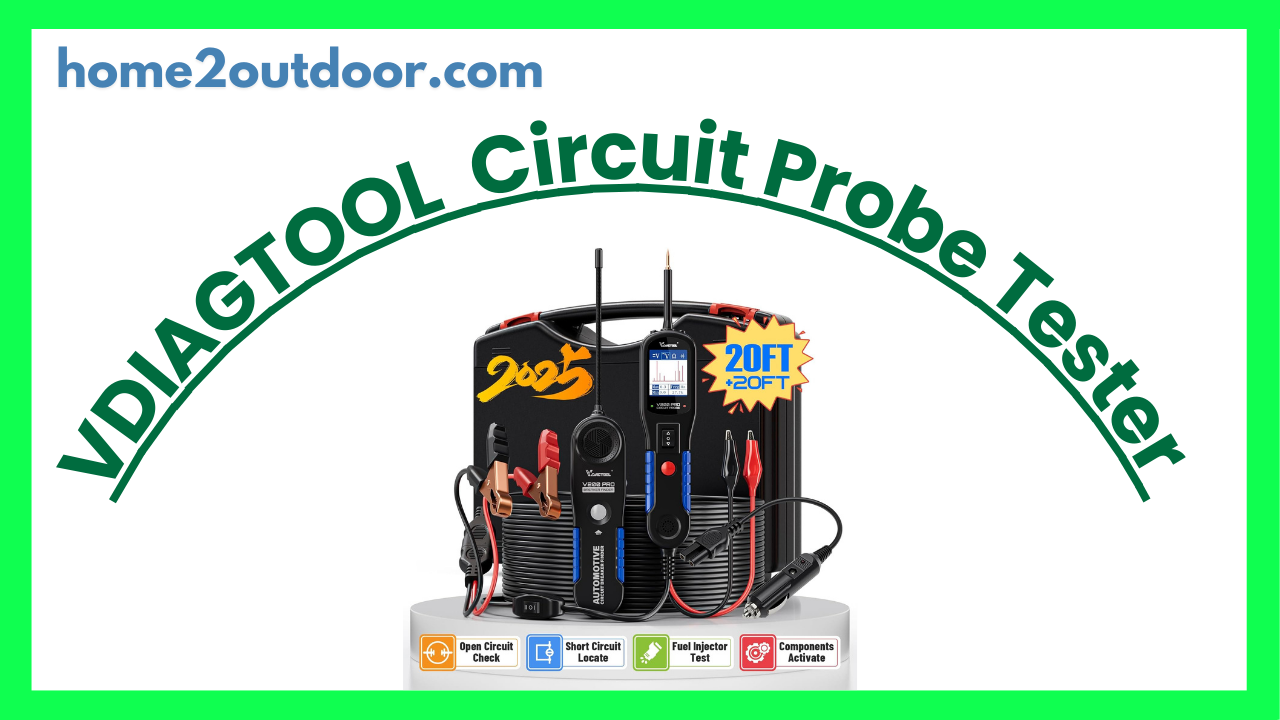

The VDIAGTOOL V200 Pro Automotive Power Circuit Probe Tester & Breaker Finder Tool is a versatile diagnostic device designed to streamline electrical troubleshooting in 12Vā24V automotive systems. It combines multiple testing functions into a single tool, making it a valuable asset for both professionals and DIY enthusiasts.
š§ Key Features
- Dual-Mode Operation: Switch between Mode I (Circuit Tester) and Mode II (Breaker Finder) to perform a wide range of diagnostics.
- Comprehensive Testing Capabilities:
- Voltage Testing: Measure both AC and DC voltages.
- Resistance & Diode Testing: Assess circuit integrity and components.
- Polarity & Continuity Checks: Determine correct wiring and continuity.
- Signal Circuit Testing: Evaluate sensor and signal circuits.
- Component Activation: Activate components like relays and fuel injectors.
- Relay & Fuse Testing: Test functionality of relays and fuses.
- Trailer Light Testing: Verify trailer lighting systems.
- Short Circuit Location: Identify open circuits and locate shorts.
- Breaker Finder Functionality: Trace wires and locate breaks or open circuits without damaging insulation.
- Safety Features: Includes short circuit protection to safeguard both the tool and vehicle electronics.
- Extended Reach: Comes with a 20ft main cable plus an additional 20ft extension cord, allowing access to all areas of the vehicle.
- User-Friendly Interface: Features a clear display and intuitive controls for ease of use.
š Specifications
| Feature | Specification |
|---|---|
| Voltage Range | 12Vā24V DC/AC |
| Cable Length | 20ft main + 20ft extension |
| Testing Modes | DC Voltage, AC Voltage, Resistance, Diode, Continuity, Polarity, Signal Circuit, Component Activation, Relay/Fuse, Trailer Light, Short Circuit Location |
| Breaker Finder | Yes |
| Safety Protection | Short Circuit Protection |
| Display | LCD with clear indicators |
| Included Accessories | Alligator clips, back probe kit |
ā Pros
- All-in-One Solution: Consolidates multiple testing functions into a single tool, reducing the need for multiple devices.
- Enhanced Diagnostic Capabilities: The breaker finder and component activation features aid in pinpointing issues and testing components effectively.
- Extended Reach: The long cables provide flexibility and accessibility in various vehicle types.
- Safety Features: Short circuit protection ensures safe operation and protects vehicle electronics.
ā ļø Cons
- Learning Curve: Some users may require time to familiarize themselves with all the functions and modes.
- Size: The tool’s size may be cumbersome in tight spaces.
š° Pricing & Availability
The VDIAGTOOL V200 Pro is available for purchase through various online retailers. Prices typically range from $100 to $150 USD, depending on the retailer and any ongoing promotions.
š Final Thoughts
The VDIAGTOOL V200 Pro offers a comprehensive set of features that can significantly enhance the efficiency of electrical diagnostics in automotive systems. Its dual-mode operation, extensive testing capabilities, and safety features make it a valuable tool for both professionals and DIY enthusiasts. While there may be a learning curve for new users, the tool’s versatility and performance justify the investment.
